CUSTOM WIRE HARNESS MANUFACTURING

Custom Ring Terminal Wire Harness

Custom ring terminal wire harnesses manufactured to your drawing, BOM, terminal part number and connection requirements. Configure wire gauge, ring lug size, crimp-pin side, insulation, labels, heat shrink, protection and overall length for your electrical assembly.

Drawing / BOM Based Custom Ring Lug & Stud Size Custom Wire Length Label & Protection Options

Send Your Drawing or BOM → View Specifications

Actual production samples are shown on this page. Final construction follows your approved drawing, BOM and inspection requirements.

Custom ring terminal wire harness manufacturer China JOWCHAIN

Actual Ring Terminal Harness Sample Ring lug + wire lead + crimp-pin configuration

Manufacturing Since 2009 Long-term experience in customized wire harness manufacturing across multiple industrial applications.

IATF 16949 Automotive quality-management certification obtained in 2021.

UL Wire Harness Certification UL wire harness certification obtained in 2024.

Drawing / BOM Production Terminals, dimensions, labels and protection controlled according to approved project data.

Quick Buyer Summary:

A custom ring terminal wire harness connects a ring lug to a crimp pin, connector or other project-specified termination using controlled wire length, gauge and identification. For accurate quotation, provide the ring terminal part number or stud size, wire specification, opposite-end terminal, dimensions, quantity and drawing/BOM whenever available.

Custom red ring terminal wire harness leads

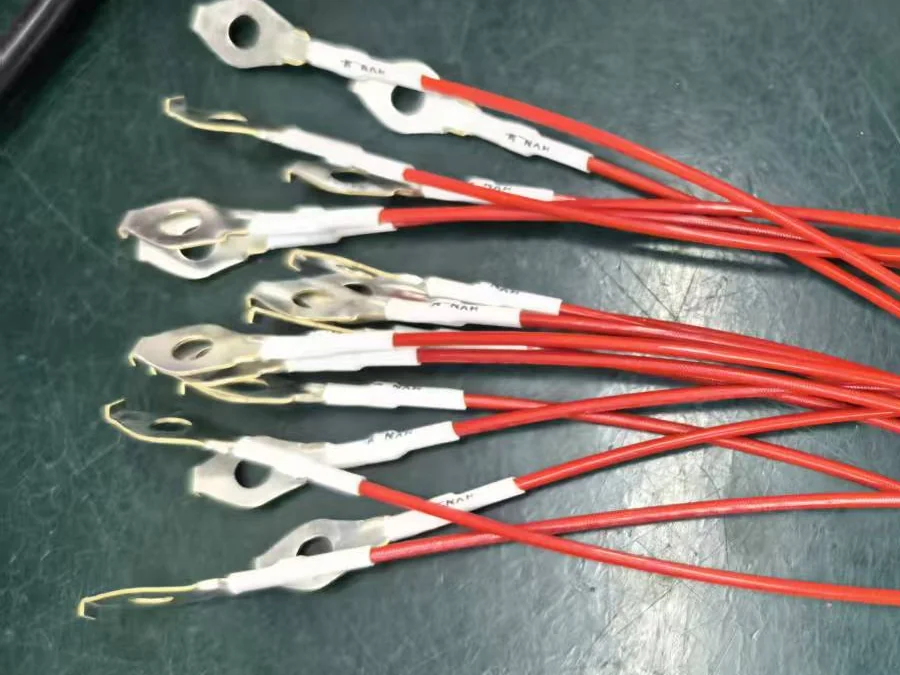

Wire harness crimp pin termination detail

PRODUCT OVERVIEW

Built Around the Exact Terminal and Connection You Need

Ring terminal harnesses look simple, but small specification errors can make an otherwise good assembly unusable. The lug hole must match the mating stud, the conductor must fit the terminal barrel, the opposite-end terminal must match its housing or mating component, and the finished wire length must suit the installation route.

JOWCHAIN builds these assemblies from approved drawings, BOMs, samples or clearly defined terminal data. Wire color, gauge, insulation, ring lug, crimp-pin side, heat shrink, sleeves, labels and packaging can be configured around the project rather than forcing the buyer into a fixed catalog design.

Ring Terminal Stud size / part number / project specified

Wire Gauge / color / insulation / length

Opposite End Crimp pin / connector / terminal

Identification Labels / markers / custom coding

TECHNICAL SPECIFICATIONS

Custom Parameters Confirmed Before Production

There is no single standard ring terminal harness that fits every electrical assembly. The correct configuration depends on the mating hardware, current path, routing space and your released engineering data.

Recommendation

If you already have a released drawing, quote from the drawing and BOM. If you only have a physical sample, confirm the terminal part numbers and critical dimensions before duplicating the assembly.

Wire Gauge	Customized to project drawing / BOM and selected terminal range
Wire Length	Customized overall length and stripped / terminated dimensions
Wire Color	Single color, coded color or project-specified identification
Ring Terminal	Customer-specified lug, stud size or approved equivalent after confirmation
Opposite Termination	Crimp pin, connector housing, terminal or project-specified end
Insulation / Protection	Heat shrink, sleeve, tube, tape or project-defined protection
Labeling	Wire marker, printed label, circuit ID or project coding
Branch Layout	Single lead or branch configuration according to drawing
Production Basis	Approved drawing, BOM, sample and agreed inspection requirements

CUSTOMIZATION OPTIONS

What Can Be Customized on a Ring Terminal Wire Harness?

Specify the details that matter to your design. The remaining construction can then be aligned around your approved component list and assembly requirements.

Wire & Gauge

Conductor size, insulation type, color coding and cut length.

Ring Lug

Stud diameter, terminal style and selected terminal part number.

Opposite End

Crimp pins, connector housings or another specified terminal.

Heat Shrink

Protection around crimp areas or identification points where required.

Branch Layout

Single lead, paired lead or multi-branch layout following installation dimensions.

Labels

Circuit identification, wire markers and project-specific coding.

Sleeving

Sleeve, tube, tape or protective wrapping where the routing environment requires it.

Packaging

Batch separation, labeling and packing aligned with production-line handling.

BUYER DECISION GUIDE

If Your Requirement Looks Like This, Choose This Route

Use the engineering data you already have. Sending relevant information at the beginning reduces unnecessary assumptions and shortens technical confirmation.

IF YOU HAVE

A Released Drawing + BOM

Best for repeatable production and fast technical review.

→ Quote and manufacture against the approved drawing and component list.

IF YOU HAVE

Only a Physical Sample

Useful for reviewing an existing assembly, although hidden component details still require confirmation.

→ Confirm terminal part numbers, stud size, wire gauge and critical dimensions first.

IF YOU ARE

Still Developing the Harness

Suitable when mating components are selected but the final harness drawing has not yet been released.

→ Start from mating terminals, installation routing and connection requirements.

QUOTATION CHECKLIST

What Should You Send for an Accurate Quote?

A photo can show the general harness structure, but it usually cannot confirm terminal barrel range, stud size, wire specification or exact dimensions. These six items make quotation significantly more reliable.

Recommendation: If some information is still unknown, mark it as “to be confirmed” instead of guessing.

1. Drawing or Sketch Overall dimensions, stripped lengths, branch positions and orientation.

2. Wire Specification Gauge, insulation, color and required wire part number.

3. Ring Terminal Terminal part number, lug style or at minimum the mating stud size.

4. Opposite-End Terminal Crimp pin, housing part number or mating connector information.

5. Quantity Prototype, pilot lot and estimated production quantity where available.

6. Inspection Requirement Electrical, dimensional, labeling or packaging checks.

COMMON SPECIFICATION MISTAKES

Four Small Errors That Can Turn Into Expensive Rework

Most ring terminal wire harness problems are not caused by the overall appearance of the assembly. They usually start with incomplete terminal information, unclear dimensions or details that were never confirmed before production.

Wrong Stud Size

A ring terminal may look correct in a photo but still fail to fit the mating bolt, grounding point or mounting stud.

Consequence: the harness cannot be installed correctly.

Incomplete Terminal Number

Similar terminals can use different plating, barrel ranges, insulation styles or locking geometries.

Consequence: fit, crimp quality or electrical performance may be affected.

Only Giving Overall Length

Overall length alone does not define strip length, crimp orientation, terminal position or branch location.

Consequence: routing and assembly dimensions may not match the equipment.

Missing Label Position

Correct label text can still cause problems if the identification position is inconsistent with the assembly process.

Consequence: sorting, installation and circuit identification become slower.

QUALITY CONTROL

Quality Control From Components to Final Inspection

Custom ring terminal wire harness quality depends on more than the finished appearance. Wire specifications, terminal selection, crimp condition, circuit continuity, labels and critical dimensions must all match the approved drawing and BOM before shipment.

Component Verification

Wire, ring terminals, crimp pins and connector components are checked against the approved BOM before assembly.

Crimp & Assembly Inspection

Terminal crimp condition, orientation and protection positions are checked during the assembly process.

Electrical Testing

Continuity and circuit relationships can be verified according to the agreed project inspection requirements.

Final Dimension Check

Critical lengths, terminal positions and identification are confirmed against approved production data.

JOWCHAIN custom wire harness quality inspection and electrical testing

Quality Management & Manufacturing Certifications

IATF 16949 ISO 9001 ISO 14001 QC08000 UL Wire Harness

ACTUAL PRODUCTION SAMPLES

Real Ring Terminal Wire Harness Details

The following production photos show actual ring-terminal and crimp-terminal configurations used in customized wire harness assemblies.

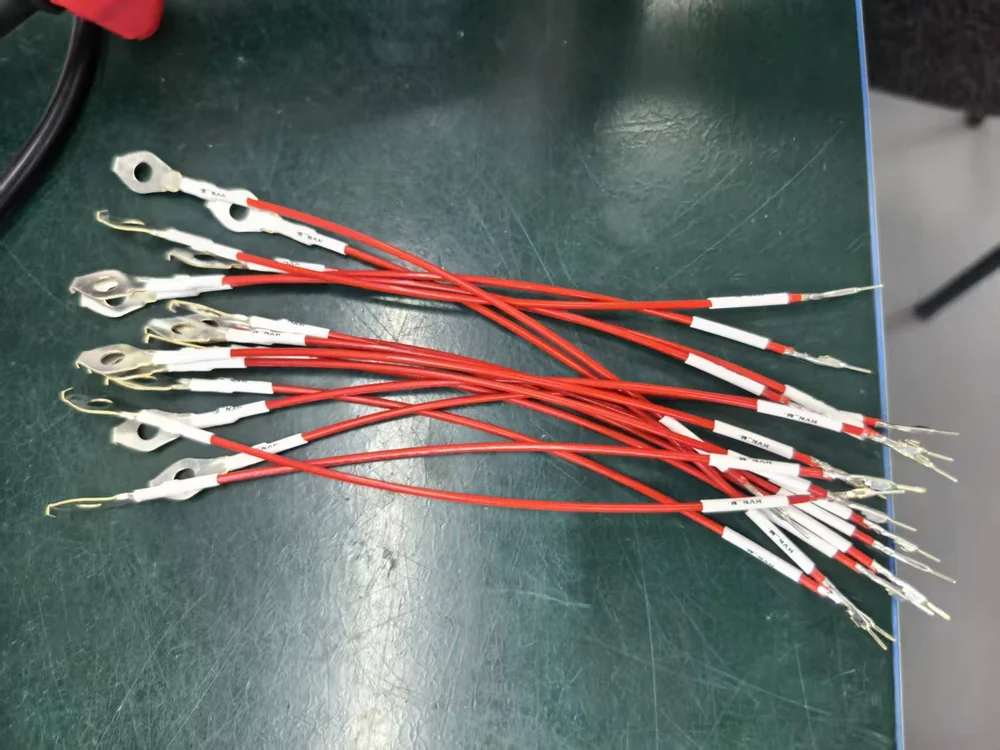

Custom red ring terminal wire harness production samples — Red wire leads showing different ring-lug sizes with opposite crimp-pin terminations for custom assemblies.

Custom black ring terminal wire harness factory production — Black wire leads with ring terminals, identification sleeves and opposite crimp terminals manufactured to project requirements.

FAQ

Frequently Asked Questions for Ring Terminal Harness Buyers

Yes. A released drawing and BOM are the preferred basis because they define the wire, ring terminal, opposite-end terminal, dimensions, labels and protection requirements. A physical sample can also be reviewed when drawings are not yet available.

Yes. Providing the exact terminal part number is preferred. If unavailable, provide the mating stud size, wire gauge and any plating or insulation requirement that must be maintained.

Yes. The opposite end can use a crimp pin, connector housing or another project-specified termination when the mating component and assembly requirements are clearly identified.

Photos cannot reliably confirm terminal barrel range, stud diameter, wire construction or exact dimensions. They are useful for reference, but quotation should be tied to confirmed component and dimensional data.

Send your drawing or sketch, wire specification, ring terminal part number or stud size, opposite-end terminal, quantity and inspection or packaging requirements. Unknown details can be marked for technical confirmation.
